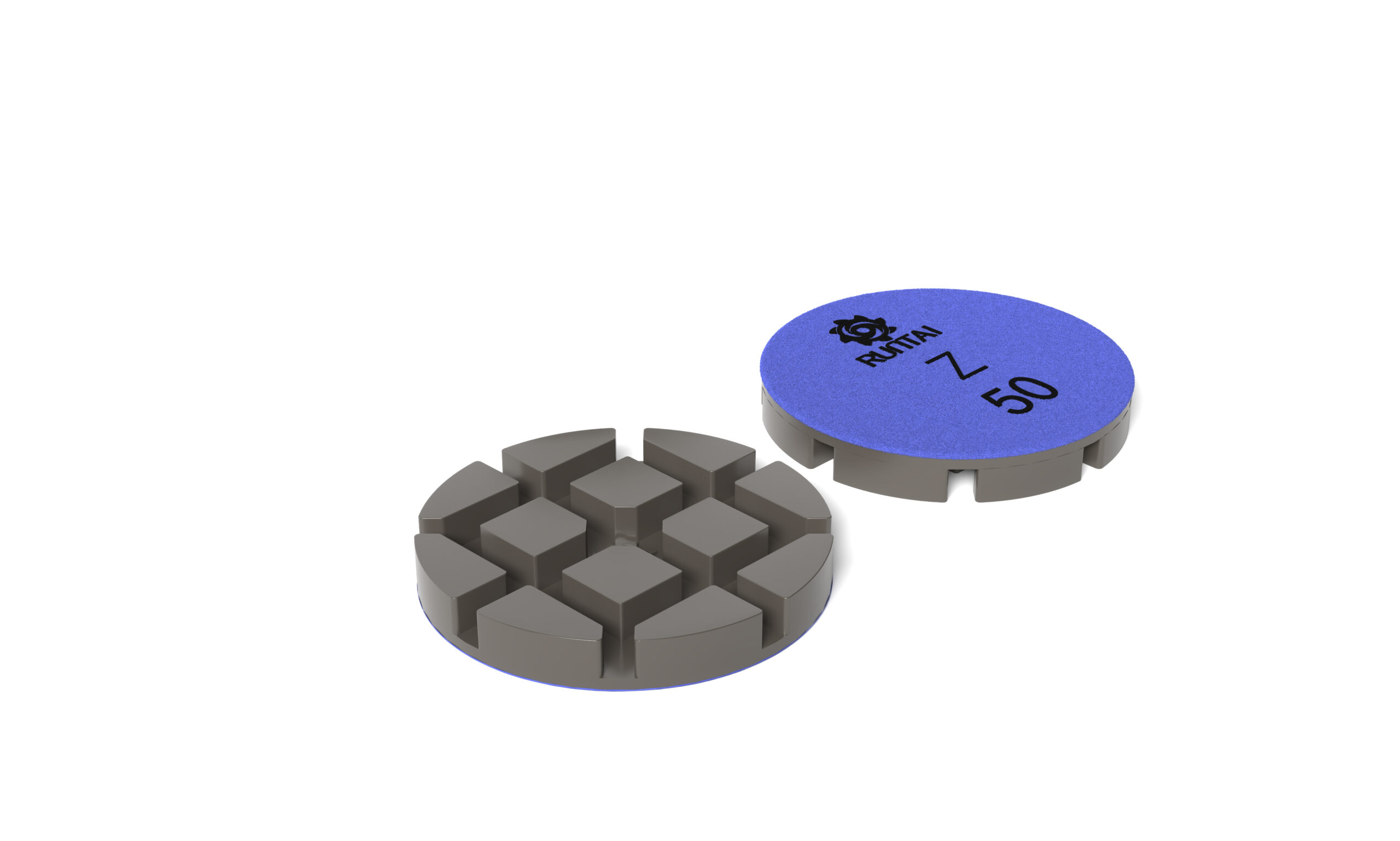

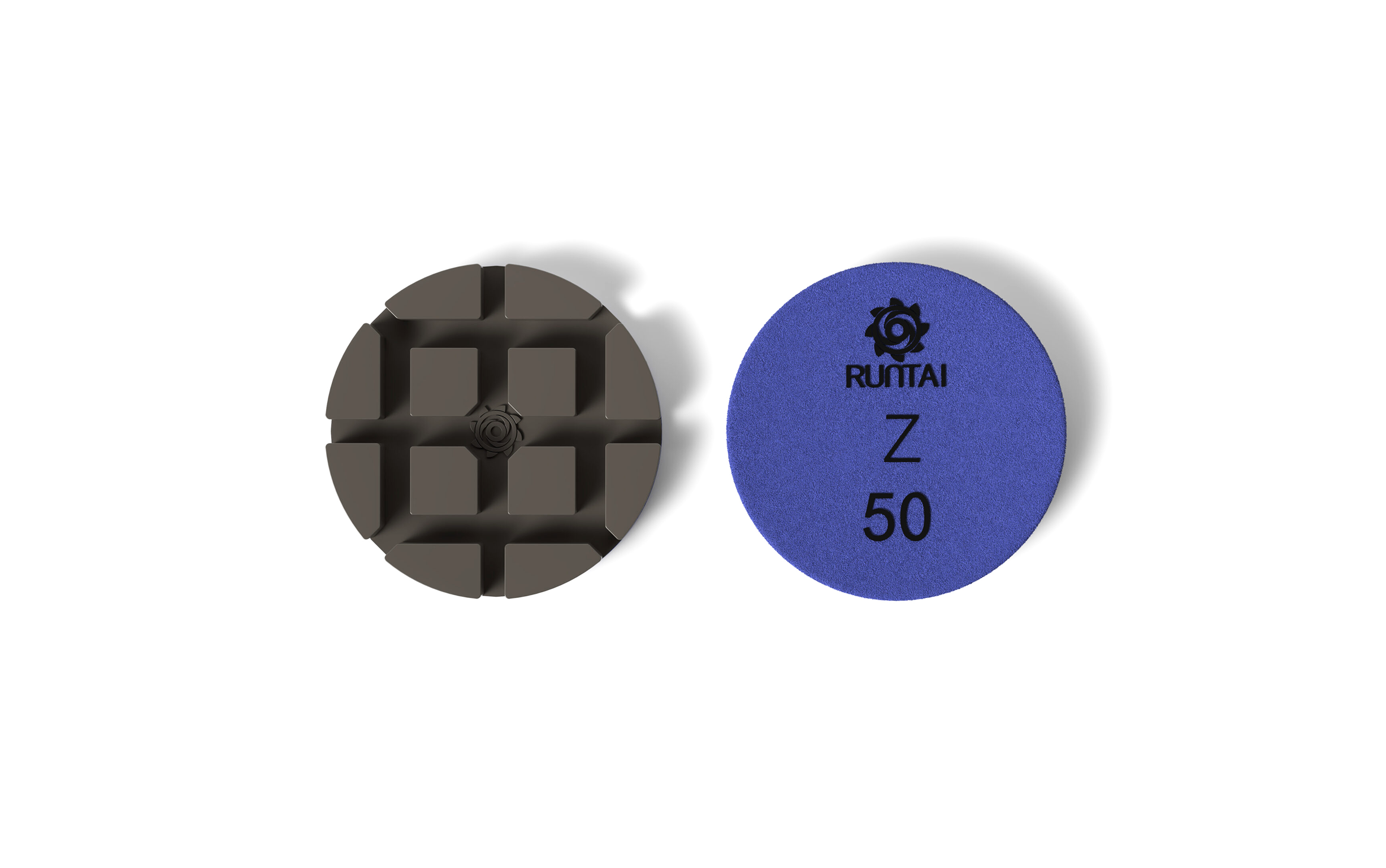

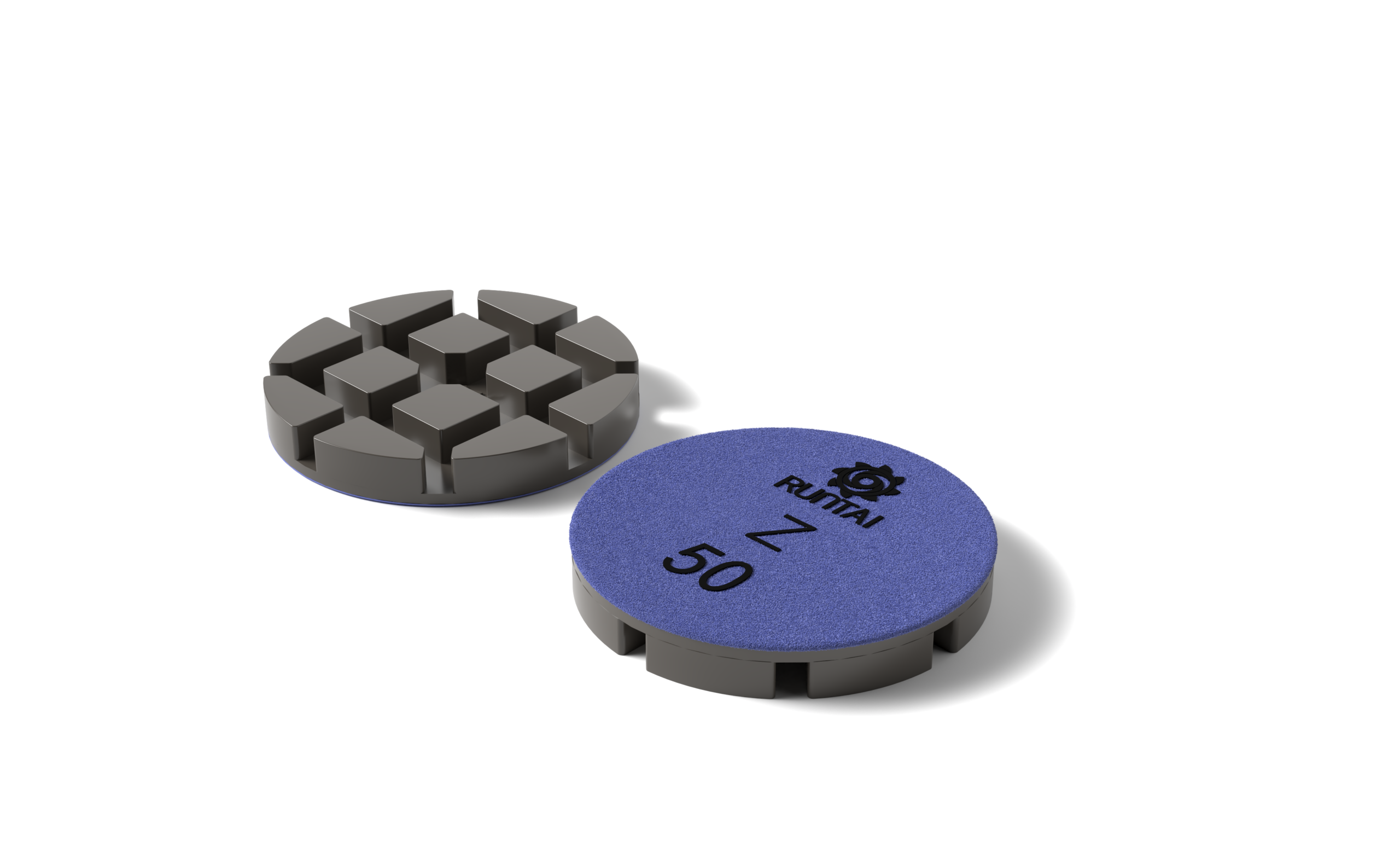

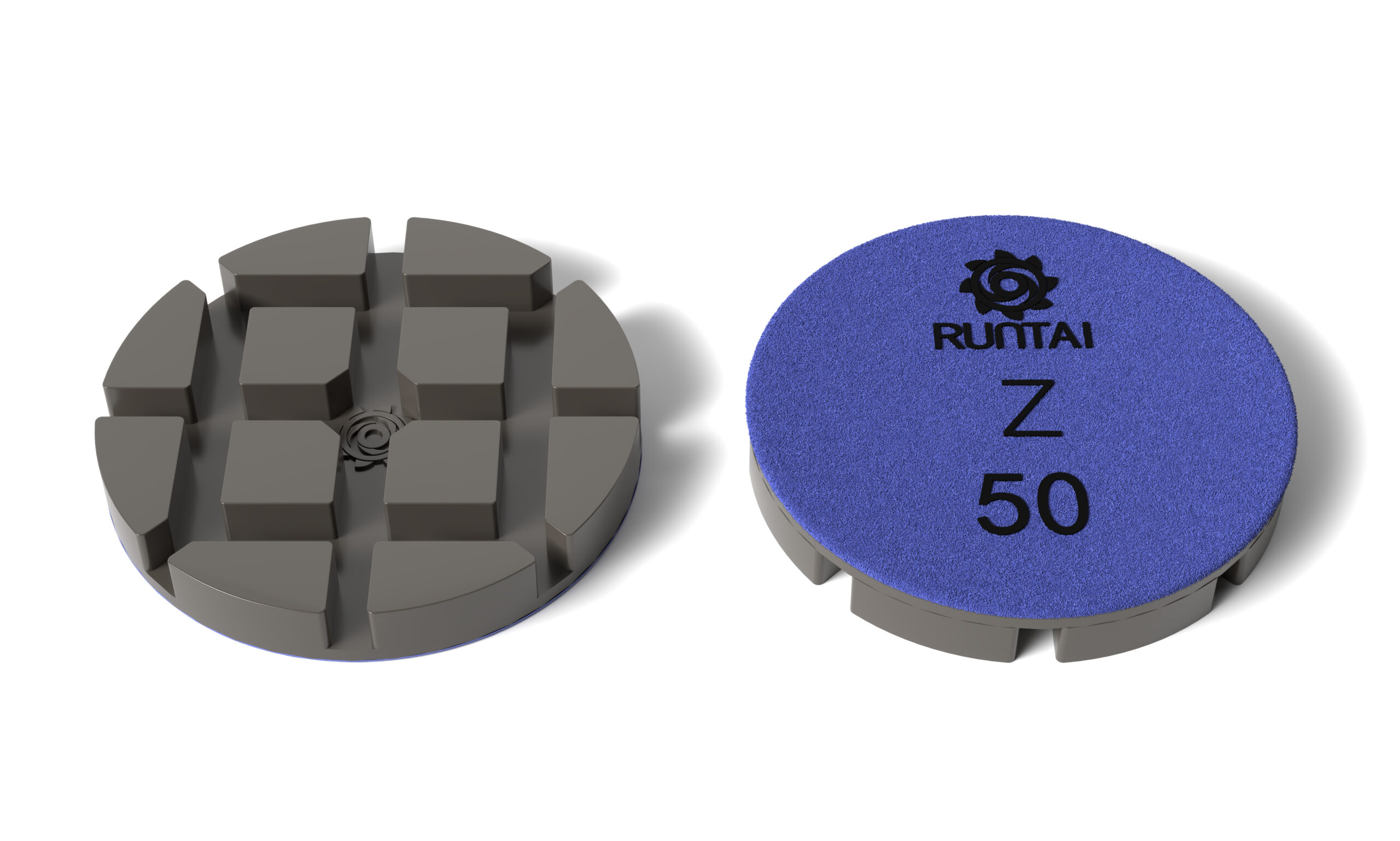

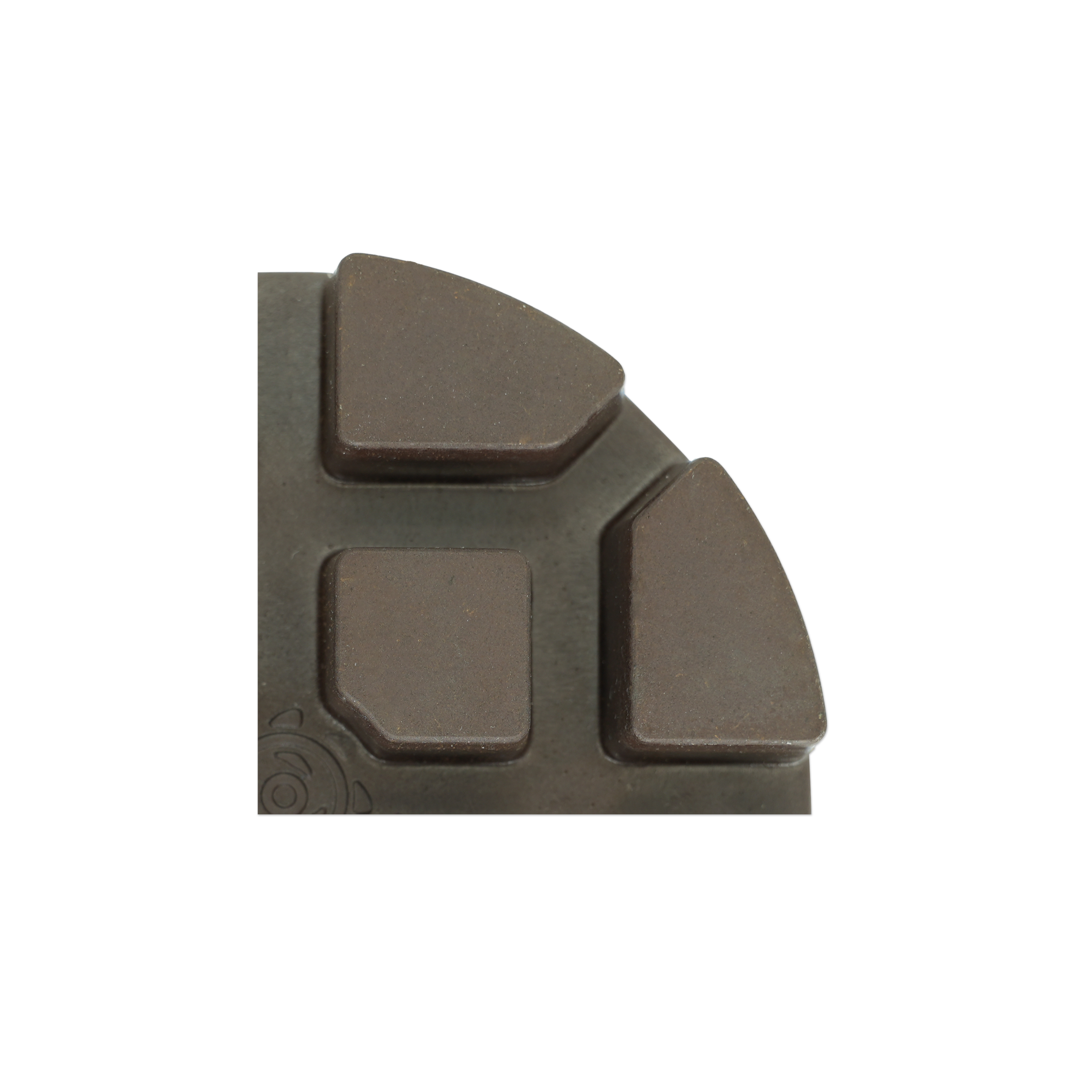

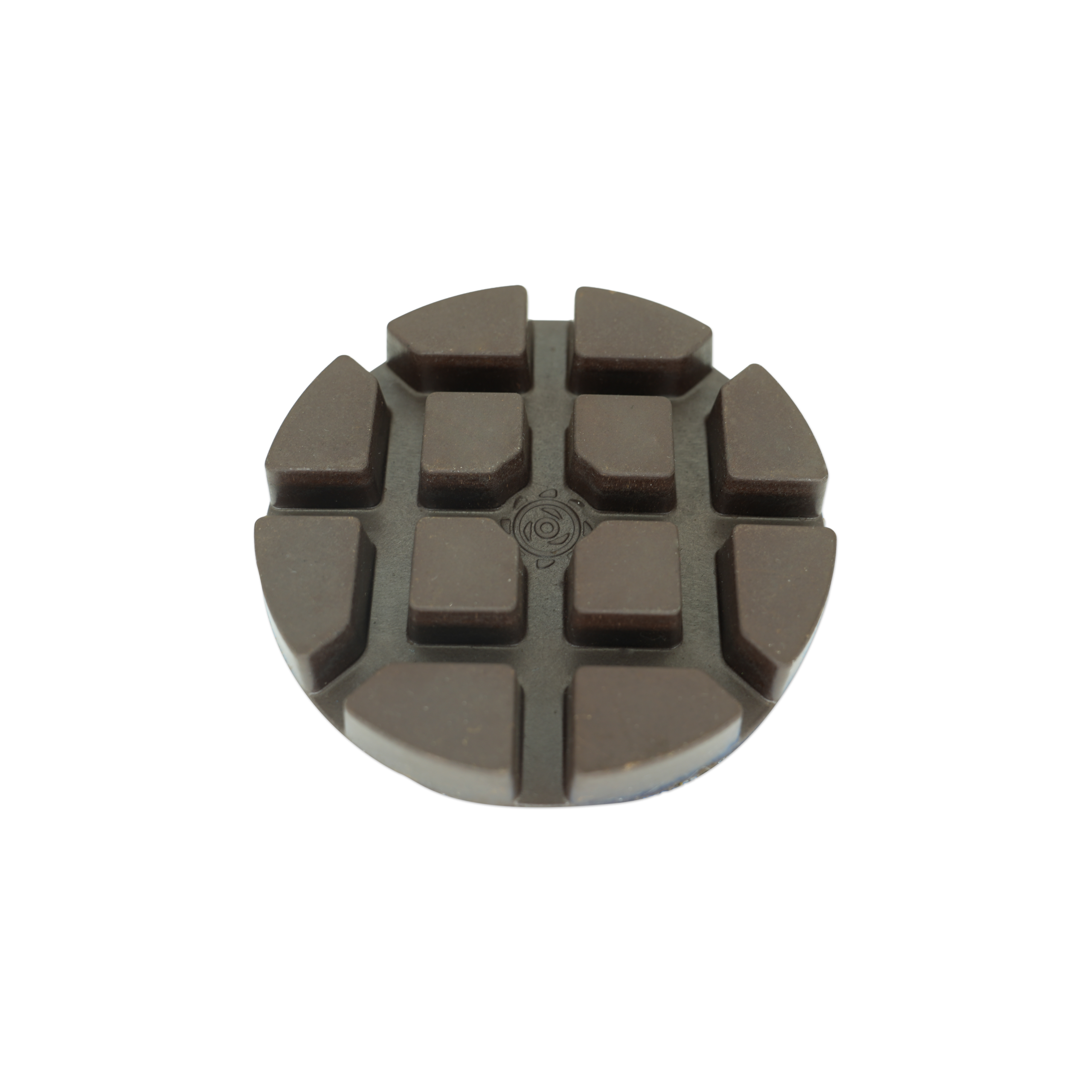

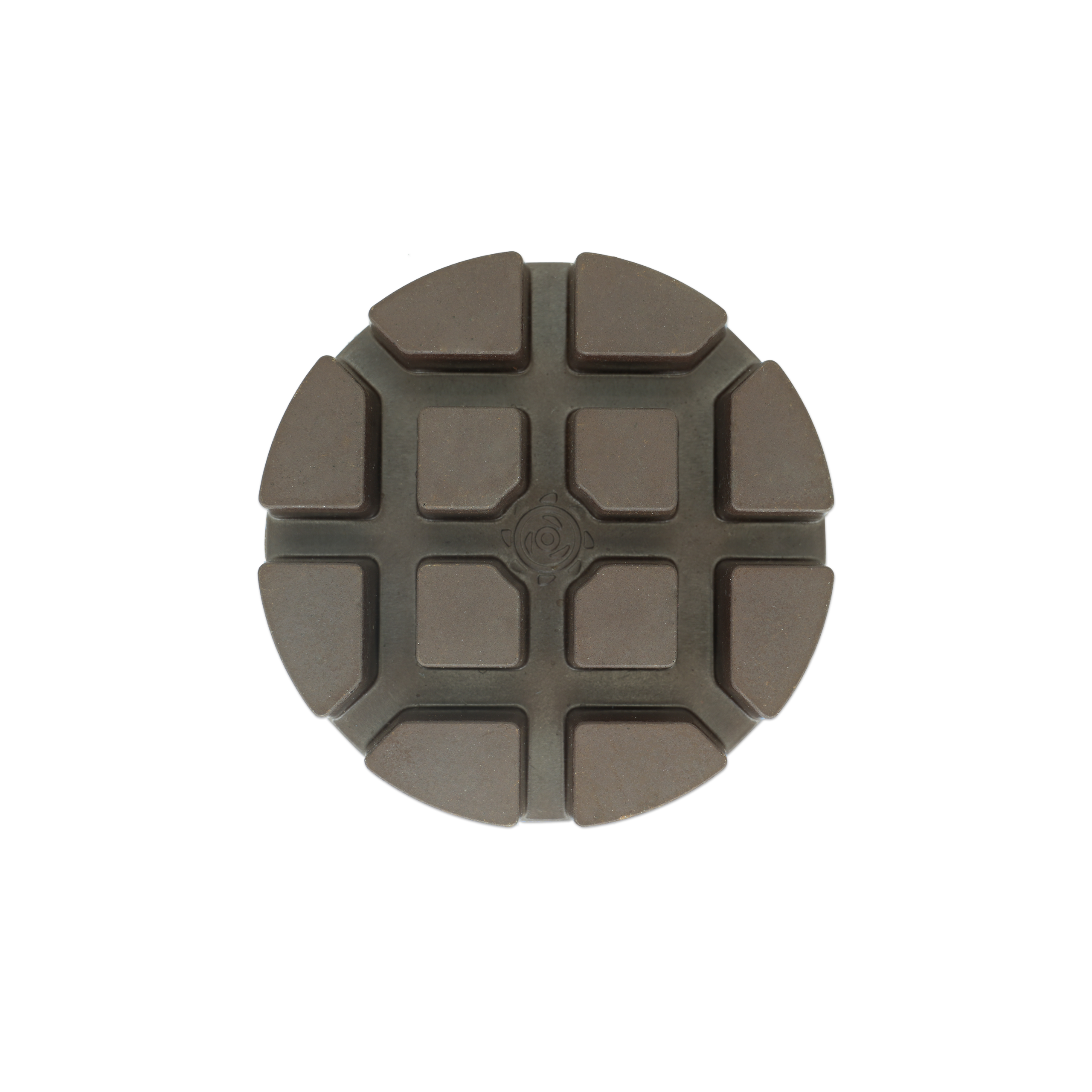

4″ Typhoon Series Resin Pads

Typhoon Series Product Positioning

The Typhoon Series diamond grinding tools are engineered for efficient and consistent dry grinding of concrete floors, delivering an optimized balance of cutting performance, wear resistance, and surface refinement. Featuring a progressive 50, 100, 200, and 400 grit system, the series provides a complete process for scratch removal, surface refinement, fine grinding, and pre-polishing preparation.

The Typhoon Series is available in Z, F, and X formulations, allowing contractors to select the appropriate performance level according to concrete hardness, machine pressure, productivity requirements, and desired surface quality:

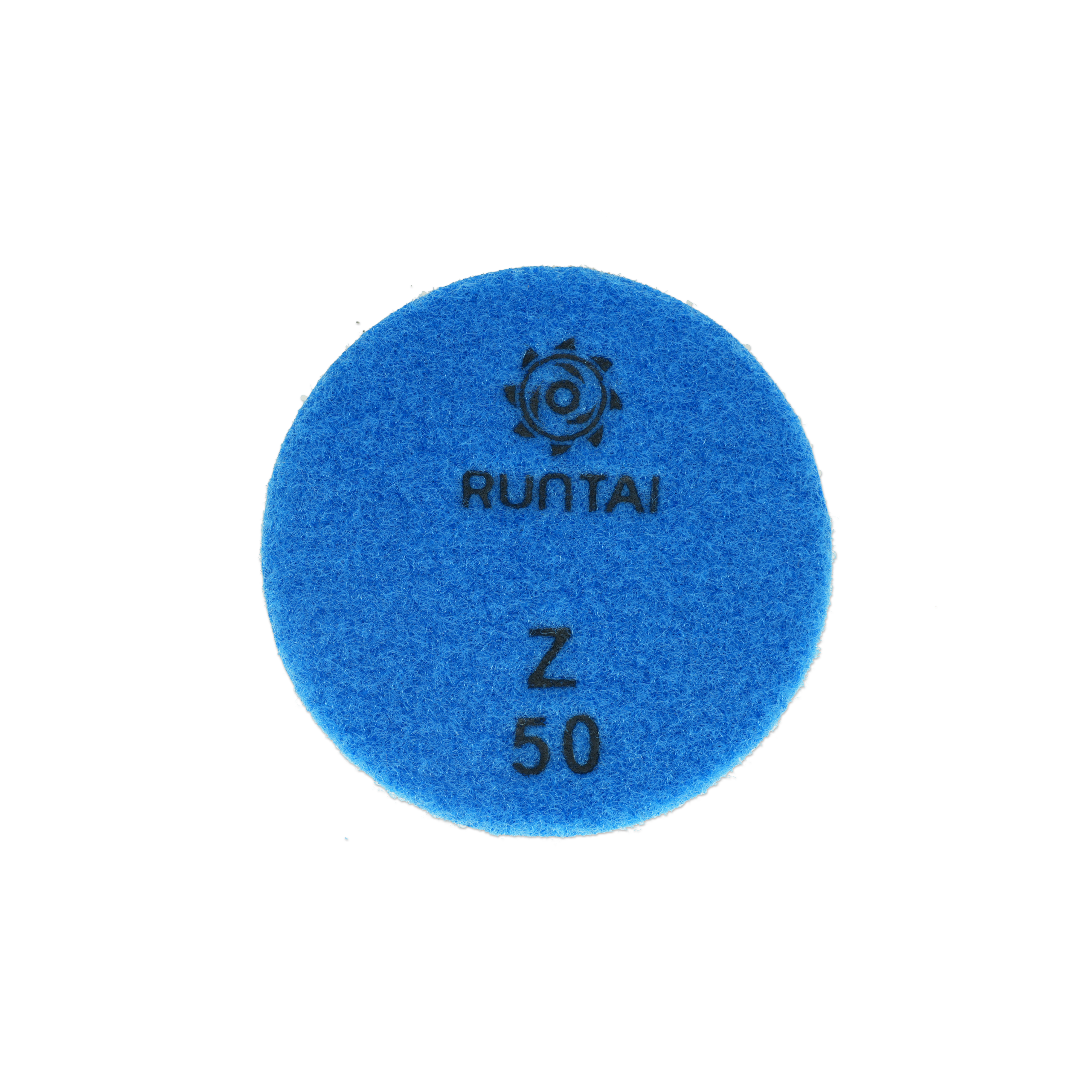

Z Balanced Bond: Combines sharp cutting, reliable wear resistance, and structural stability. It is suitable for standard concrete and a wide range of general flooring applications.
F Sharp-Cutting Bond: Provides more aggressive cutting and faster diamond exposure, making it ideal for harder concrete, lower-pressure machines, and projects requiring increased productivity.
X High-Performance Bond: Features a proprietary diamond grit and bond formulation developed to optimize cutting efficiency, scratch control, and grinding consistency. It is suitable for projects requiring higher productivity and superior surface quality.

Recommended Grit Sequence and Applications

50 Grit: Quickly removes deep scratches left by metal-bond tools, corrects the floor, and establishes a uniform initial grinding pattern.
100 Grit: Refines the 50-grit scratch pattern, reduces coarse marks, and improves surface flatness and consistency.
200 Grit: Removes residual scratches and densifier residue, producing a smoother and more uniform surface.
400 Grit: Completes the fine-grinding stage, reduces surface roughness, and prepares the floor for 800, 1500, and higher-grit polishing tools.

Throughout the grinding process, the Typhoon Series maintains consistent cutting performance and controlled, uniform scratch patterns. It helps reduce tool loading, irregular wear, and transition gaps between grinding stages. Its multiple formulation options provide accurate matching for different concrete hardness levels and machine conditions, helping reduce rework and unnecessary tool consumption.

The series is suitable for concrete floors, dry-shake hardener floors, densified concrete, old floor restoration, cementitious terrazzo transition grinding, and polished concrete applications. It is a professional solution for contractors seeking an effective balance of cutting efficiency, tool life, floor adaptability, and refined surface quality.

Available Formulations: Z Balanced Bond | F Sharp-Cutting Bond | X High-Performance Bond

Recommended Grits: 50 | 100 | 200 | 400 Grit

台风系列是一款用途广泛的金刚石树脂研磨系统，专为C25-C50混凝土楼板而设计。它采用均衡的树脂结合剂配方，可在各种硬度等级的混凝土上提供可靠的切割性能、可控的磨损和一致的表面精细化效果。

Typhoon系列磨刀机提供从50#到1500#的多种粒度选择，可满足从初始表面精修到高质量精加工的全套研磨和抛光预处理需求。对于需要在商业、工业和抛光混凝土应用中实现稳定性能、长使用寿命和一致效果的承包商而言，它是理想之选。
